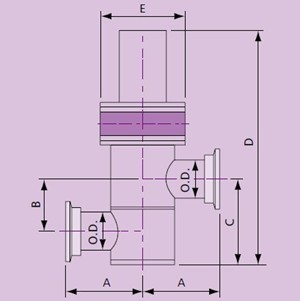

【KF單氣動高真空直通閥】參數規格： KF Pneumatically Actuated Z-Inline Valve (With bellows,air to open,spring to close)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
D
|
E
|
|
IVB-KF16-P
|
KF16
|
54.6
|
28.7
|
47.5
|
149.9
|
57.1
|
|
IVB-KF25-P
|
KF25
|
51.6
|
34.8
|
57.2
|
155.9
|
57.1
|
|
IVB-KF40-P
|
KF40
|
60.9
|
47.8
|
79.3
|
217.4
|
76.2
|
|
IVB-KF50-P
|
KF50
|
86.4
|
66.5
|
104.6
|
280.7
|
88.9
|
KF Pneumatically Actuated Z-Inline Valve (Without bellows,air to open,spring to close)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
D
|
E
|
|
IV-KF16-P
|
KF16
|
54.6
|
28.7
|
47.5
|
149.9
|
57.1
|
|
IV-KF25-P
|
KF25
|
51.6
|
34.8
|
57.2
|
155.9
|
57.1
|
|
IV-KF40-P
|
KF40
|
60.9
|
47.8
|
79.3
|
217.4
|
76.2
|
|
IV-KF50-P
|
KF50
|
86.4
|
66.5
|
104.6
|
280.7
|
88.9
|
【KF單氣動高真空直通閥】產品特點： 1.KF單氣動高真空直通閥和KF中心支架,KF真空法蘭,KF真空卡箍,KF真空鏈?zhǔn)娇ü颗涮资褂?
2.KF單氣動高真空直通閥和KF真空三通,四通,五通,六通,彎頭,KF真空波紋管,KF真空軟管,真空腔體配合使用
3.KF單氣動高真空直通閥手動開啟和關閉,主要采用真空波紋管密封和密封圈密封兩種形式
|
