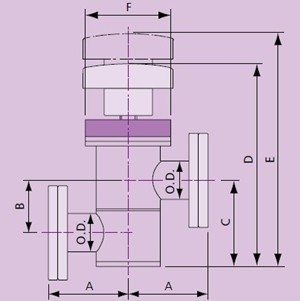

【CF手動高真空直通閥】參數(shù)規(guī)格： CF Z-Inline Valve (Manually Operated with Bellows)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
D
|
E
|
F
|
|
IVB-CR16-M
|
CR16
|
63.5
|
28.7
|
47.5
|
129.3
|
148.8
|
57.1
|
|
IVB-CR35-M
|
CF35
|
62.5
|
47.8
|
79.3
|
181.9
|
214.4
|
76.2
|
CF Z-Inline Valve (Manually Operated without Bellows)
|
Model No.
|
Flange type
|
A
|
B
|
C
|
D
|
E
|
F
|
|
IV-CR16-M
|
CR16
|
63.5
|
28.7
|
47.5
|
129.3
|
148.8
|
57.1
|
|
IV-CR35-M
|
CF35
|
62.5
|
47.8
|
79.3
|
181.9
|
214.4
|
76.2
|
【CF手動高真空直通閥】產(chǎn)品特點： 1.CF手動高真空直通閥和CF無氧銅墊片,CF真空法蘭,CF活套真空法蘭等配套使用
2.CF手動高真空直通閥和CF真空三通,四通,五通,六通,彎頭,CF真空波紋管,CF真空軟管,真空腔體配合使用
3.CF手動高真空直通閥手動開啟和關(guān)閉,主要采用真空波紋管密封和密封圈密封兩種形式
|
