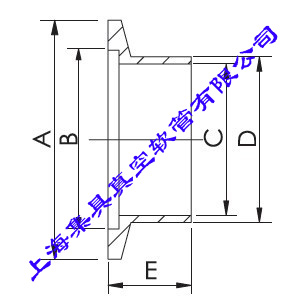

【KF接頭(Short)】參數(shù)規(guī)格： KF Weld Stub Flanges,Short（Japan）
|
Model No.
|
Standard
|
Material
|
A
|
B
|
C
|
D
|
E
|
|
KF10SHNSJ
|
Japan
|
304 S.S.
|
30
|
12.2
|
10.6
|
13.8
|
20
|
|
KF16SHNSJ
|
Japan
|
304 S.S.
|
30
|
17.2
|
16
|
20
|
20
|
|
KF25SHNSJ
|
Japan
|
304 S.S.
|
40
|
26.2
|
24
|
27.2
|
20
|
|
KF40SHNSJ
|
Japan
|
304 S.S.
|
55
|
41.2
|
39
|
42.7
|
20
|
|
KF50SHNSJ
|
Japan
|
304 S.S.
|
75
|
52.2
|
55
|
60.5
|
20
|
|
KF63SHNSJ
|
Japan
|
304 S.S.
|
87
|
70
|
70
|
76.2
|
20
|
KF Weld Stub Flanges,Short（U.S.A）
|
Model No.
|
Standard
|
Material
|
A
|
B
|
C
|
D
|
E
|
|
KF10SHNSA
|
U.S.A
|
304 S.S.
|
30
|
12.2
|
9.4
|
12.7
|
20
|
|
KF16SHNSA
|
U.S.A
|
304 S.S.
|
30
|
17.2
|
15.7
|
19.05
|
20
|
|
KF25SHNSA
|
U.S.A
|
304 S.S.
|
40
|
26.2
|
22.1
|
25.4
|
20
|
|
KF40SHNSA
|
U.S.A
|
304 S.S.
|
55
|
41.2
|
34.8
|
38.1
|
20
|
|
KF50SHNSA
|
U.S.A
|
304 S.S.
|
75
|
52.2
|
47.5
|
50.8
|
20
|
KF Weld Stub Flanges,Short（Europe）
|
Model No.
|
Standard
|
Material
|
A
|
B
|
C
|
D
|
E
|
|
KF10SHNSE
|
Europe
|
304 S.S.
|
30
|
12.2
|
10
|
14
|
30
|
|
KF16SHNSE
|
Europe
|
304 S.S.
|
30
|
17.2
|
16
|
20
|
30
|
|
KF20SHNSE
|
Europe
|
304 S.S.
|
40
|
22.2
|
21
|
25
|
30
|
|
KF25SHNSE
|
Europe
|
304 S.S.
|
40
|
26.2
|
24
|
28
|
30
|
|
KF32SHNSE
|
Europe
|
304 S.S.
|
55
|
34.2
|
34
|
38
|
30
|
|
KF40SHNSE
|
Europe
|
304 S.S.
|
55
|
41.2
|
41
|
45
|
30
|
|
KF50SHNSE
|
Europe
|
304 S.S.
|
75
|
52.2
|
50.6
|
57
|
30
|
|
